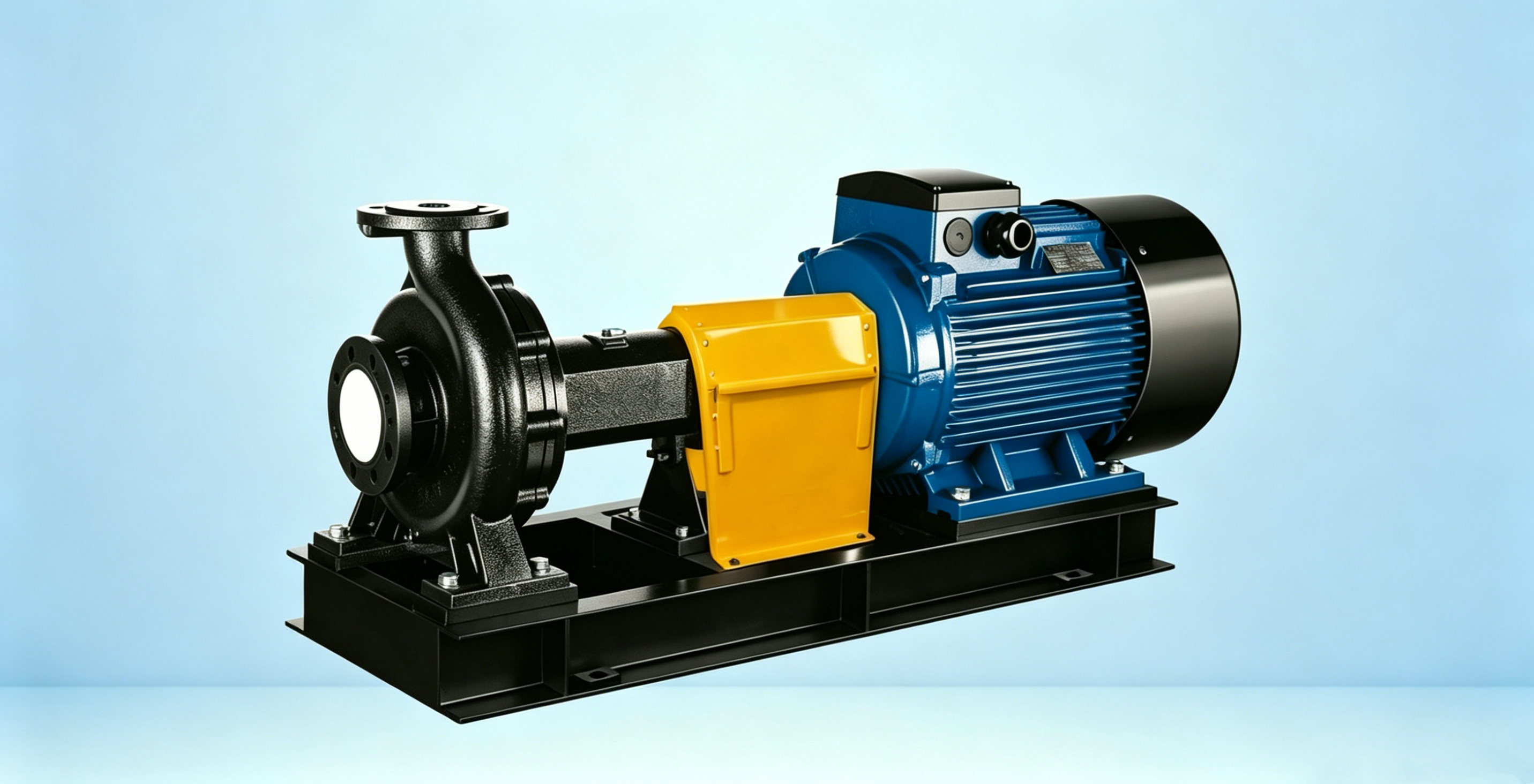

CZ Chemical Pump

Product Overview

K(S) CZ series standard chemical pump is a horizontal single-stage single-suction centrifugal pump complying with DIN24256/ISO2858 standards. Features modular installation unit design with interchangeable components across specifications, reducing spare parts inventory. The bearing frame, shaft, packing box and impeller form a removable module without pipeline disassembly.

Key Features

• Efficient and energy-saving with excellent hydraulic performance, high efficiency and wide operational range; impeller size adjustable for different performance requirements
• Strong universality with good serialization across the series, enabling convenient unified management and reduced spare parts inventory
• Reliable operation with enlarged pump shaft, eliminated shaft sleeve, reduced sealing surfaces and lower failure rate
• Safety and environmental protection with enhanced bearing box, oil lubrication avoidance, reduced leakage points and improved site hygiene
• Multiple seal options including single seal, double seal, packing seal and K-type seal configurations
• Convenient maintenance with containerized single or double seal structure enabling accurate installation and replacement without professional personnel
• Flat performance curve with low cavitation value and high efficiency maintained even under insufficient load conditions
• Axial force balanced through back blades or balance rings and holes on closed single suction impellers
• Single row ball bearings with thin oil lubrication, automatic oil level control via constant position oil cup and labyrinth seal protection

Technical Specifications
