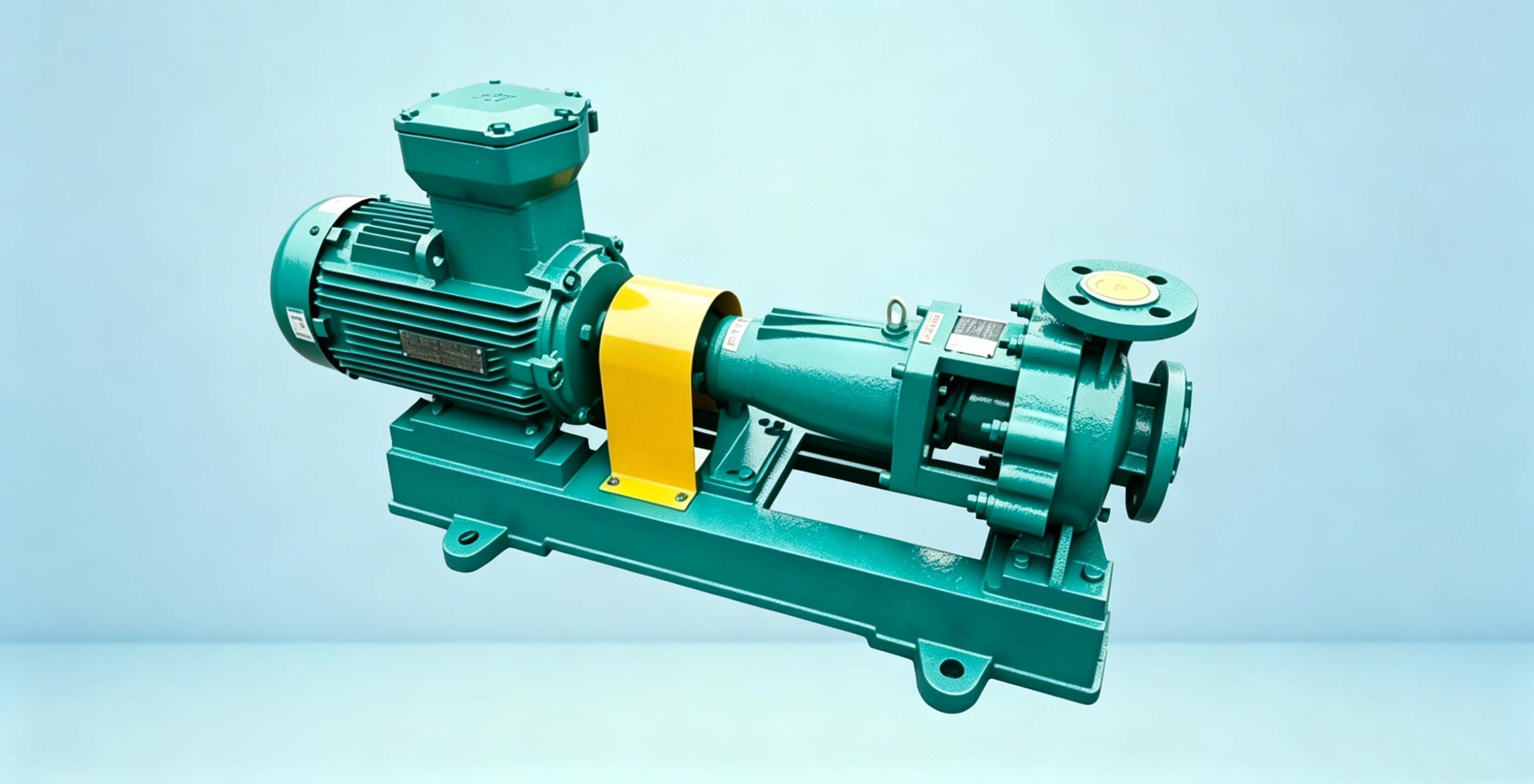

PTFE-Lined Chemical Pump

Product Overview

Designed and manufactured in compliance with international standards alongside established non-metallic pump fabrication techniques, featuring metal shell lined with FEP (F46) or PFA with integrally compression-sintered components.

Key Features

• Pump casing features metal shell lined with FEP (F46) or PFA for superior corrosion resistance
• Pump cover, impeller and shaft sleeve are integrally compression-sintered with metal inserts fully encapsulated with fluoroplastic
• Externally mounted high-performance bellows mechanical seal with 99.9% alumina ceramic or silicon carbide stationary ring
• Rotating seal ring uses PTFE-filled composite delivering outstanding corrosion and abrasion resistance
• Cast steel reinforcement at suction and discharge nozzles improves temperature and pressure resistance
• Superior corrosion and high-temperature resistance with anti-ageing property
• High mechanical strength with stable operation and optimized structural design
• Dependable tight sealing with easy disassembly for maintenance
• Extended service lifespan with cost-effective replacement for expensive titanium alloy and Monel alloy pumps
