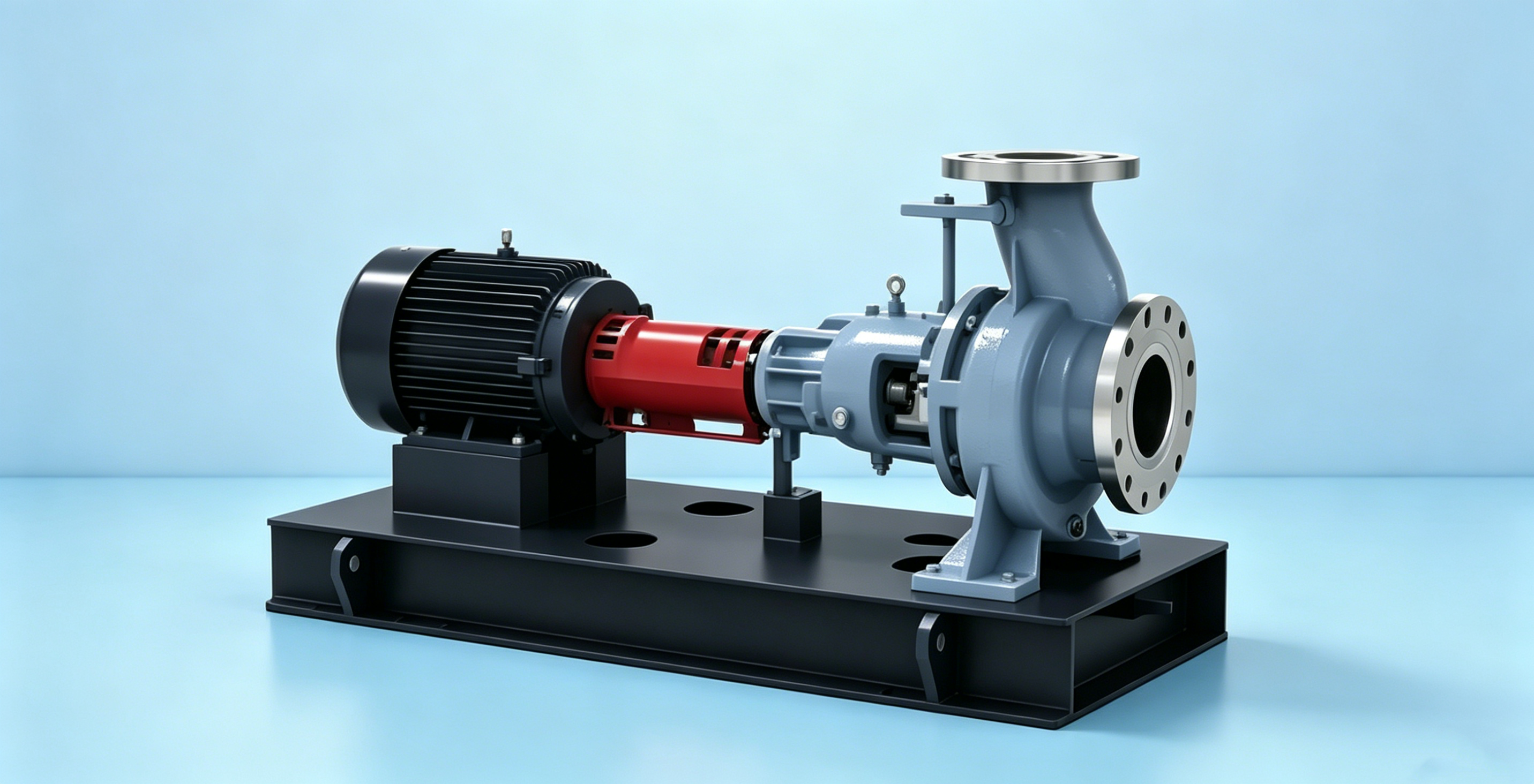

ZA Petrochemical Process Pump

Product Overview

Developed in strict accordance with API 610 specifications, our K(S)ZA(E) range represents an advanced domestic generation of process pumps featuring horizontal, single-stage, single-suction centrifugal design with closed impellers.

Key Features

• API 610 compliant design with axial suction and radial discharge configuration
• Balance holes integrated for hydraulic axial thrust balancing
• Double volute casing for all models with discharge DN80 and above to counteract hydraulic radial loads
• Cartridge mechanical seals complete with auxiliary cooling, flushing or barrier fluid piping systems
• One-piece bearing housing adopts oil-sump lubrication paired with constant-level oil cups
• Spacer-type flexible diaphragm couplings with back pull-out construction for simplified maintenance
• Standardized modular design ensures high part commonality and full series compatibility
• Pump cartridge can be withdrawn rearward without disconnecting suction/discharge flanges or drive motor
• Multiple cooling options available including natural cooling, water cooling or forced air cooling

Technical Specifications
